| 额定电压Rated voltage |
螺栓 Thread |
类别Class |
标准Standard |
AC 8.3 kV |
M16 |
后备保护Back up |
IEC60282-1、IEC60549 |
|
| |
开尔泰型号
Kaiert Type |
额定电流
Rated Current |
SIBA Type |
尺寸Length
L1(mm) |
尺寸Length
L2(mm) |
尺寸Length
L3(mm) |
尺寸Length
D(mm) |
分断能力
Rated breaking Current |
| XRNCBM4-8.3 |
6.3A |
30 405 21.6.3 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM4-8.3 |
10A |
30 405 21.10 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM4-8.3 |
16A |
30 405 21.16 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM4-8.3 |
20A |
30 405 21.20 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM4-8.3 |
25A |
30 405 21.25 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM4-8.3 |
31.5A |
30 405 21.31.5 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM4-8.3 |
40A |
30 405 21.40 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM4-8.3 |
50A |
30 405 21.50 |
359 |
420 |
395 |
Φ63.5 |
63KA |
| XRNCBM4-8.3 |
63A |
30 405 21.63 |
359 |
420 |
395 |
Φ63.5 |
63KA |
| XRNCBM4-8.3 |
80A |
30 405 21.80 |
359 |
420 |
395 |
Φ63.5 |
63KA |
| XRNCBM4-8.3 |
100A |
30 405 21.100 |
359 |
420 |
395 |
Φ63.5 |
63KA |
| XRNCBM4-8.3 |
125A |
30 405 21.125 |
359 |
420 |
395 |
Φ63.5 |
63KA |
|
| |
| 额定电压Rated voltage |
类别Class |
标准Standard |
AC 8.3 kV |
后备保护Back up |
IEC60282-1、IEC60549 |
|
| |
开尔泰型号
Kaiert Type |
额定电流
Rated Current |
SIBA Type |
尺寸Length
L1(mm) |
尺寸Length
L2(mm) |
尺寸Length
L3(mm) |
尺寸Length
D(mm) |
分断能力
Rated breaking Current |
| XRNCM2-8.3 |
6.3A |
30 411 21.6.3 |
254 |
354 |
304 |
Φ63.5 |
63KA |
| XRNCM2-8.3 |
10A |
30 411 21.10 |
254 |
354 |
304 |
Φ63.5 |
63KA |
| XRNCM2-8.3 |
16A |
30 411 21.16 |
254 |
354 |
304 |
Φ63.5 |
63KA |
| XRNCM2-8.3 |
20A |
30 411 21.20 |
254 |
354 |
304 |
Φ63.5 |
63KA |
| XRNCM2-8.3 |
25A |
30 411 21.25 |
254 |
354 |
304 |
Φ63.5 |
63KA |
| XRNCM2-8.3 |
31.5A |
30 411 21.31.5 |
254 |
354 |
304 |
Φ63.5 |
63KA |
| XRNCM2-8.3 |
40A |
30 411 21.40 |
254 |
354 |
304 |
Φ63.5 |
63KA |
| XRNCM2-8.3 |
50A |
30 412 21.50 |
359 |
459 |
409 |
Φ63.5 |
63KA |
| XRNCM2-8.3 |
63A |
30 412 21.63 |
359 |
459 |
409 |
Φ63.5 |
63KA |
| XRNCM2-8.3 |
80A |
30 412 21.80 |
359 |
459 |
409 |
Φ63.5 |
63KA |
| XRNCM2-8.3 |
100A |
30 412 21.100 |
359 |
459 |
409 |
Φ63.5 |
63KA |
| XRNCM2-8.3 |
125A |
30 412 21.125 |
359 |
459 |
409 |
Φ63.5 |
63KA |
|
| |
XRNCBM3、XRNCBM4—Dimensions 安装尺寸 (mm): |
 |
 |

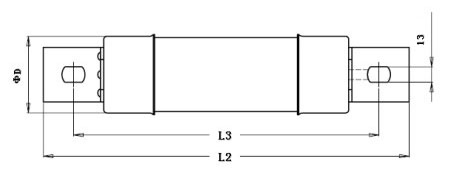

| XRNCM2—Dimensions 安装尺寸 (mm): |
 |
 |
| Time Current Characteristics 时间---电流特性曲线: |
 |
| CUT OFF Current Diagram截断电流特性曲线： |
 |
